10~11 task2

(更新)升降梯後來有成功做出來，成果影片在w14

(更新)搬運機有成功做出來，成果影片在w15

1.利用api來控制我們stage1的產品，但是因為我們之前沒有成功模擬出來，所以也沒有達到完全控制

2.stage2的產品還在測試中

3.錄製影片，放在每周影片區，順便秀一下stage3的產品

升降梯程式:

程式:

# File created by Thibaut Royer, Epitech school
# thibaut1.royer@epitech.eu
# It intends to be an example program for the "Two wheels, one arm" educative project.

import sim as vrep
import math
import random
import time
#import keyboard


print ('Start')

# Close eventual old connections
vrep.simxFinish(-1)
# Connect to V-REP remote server
clientID = vrep.simxStart('127.0.0.1', 19997, True, True, 5000, 5)

if clientID != -1:
    print ('Connected to remote API server')

    res = vrep.simxAddStatusbarMessage(
        clientID, "40823220",
        vrep.simx_opmode_oneshot)
    if res not in (vrep.simx_return_ok, vrep.simx_return_novalue_flag):
        print("Could not add a message to the status bar.")


    opmode = vrep.simx_opmode_oneshot_wait



    vrep.simxStartSimulation(clientID, opmode)
    ret,front_handle=vrep.simxGetObjectHandle(clientID,"joint0",opmode)
    ret,left_handle=vrep.simxGetObjectHandle(clientID,"joint",opmode)
    ret,right_handle=vrep.simxGetObjectHandle(clientID,"joint2",opmode)
    vrep.simxSetJointTargetVelocity(clientID,left_handle,10,opmode)
    #vrep.simxGetObjectHandle(clientID, "main", opmode)



else:
    print ('Failed connecting to remote API server')
    print ('End')

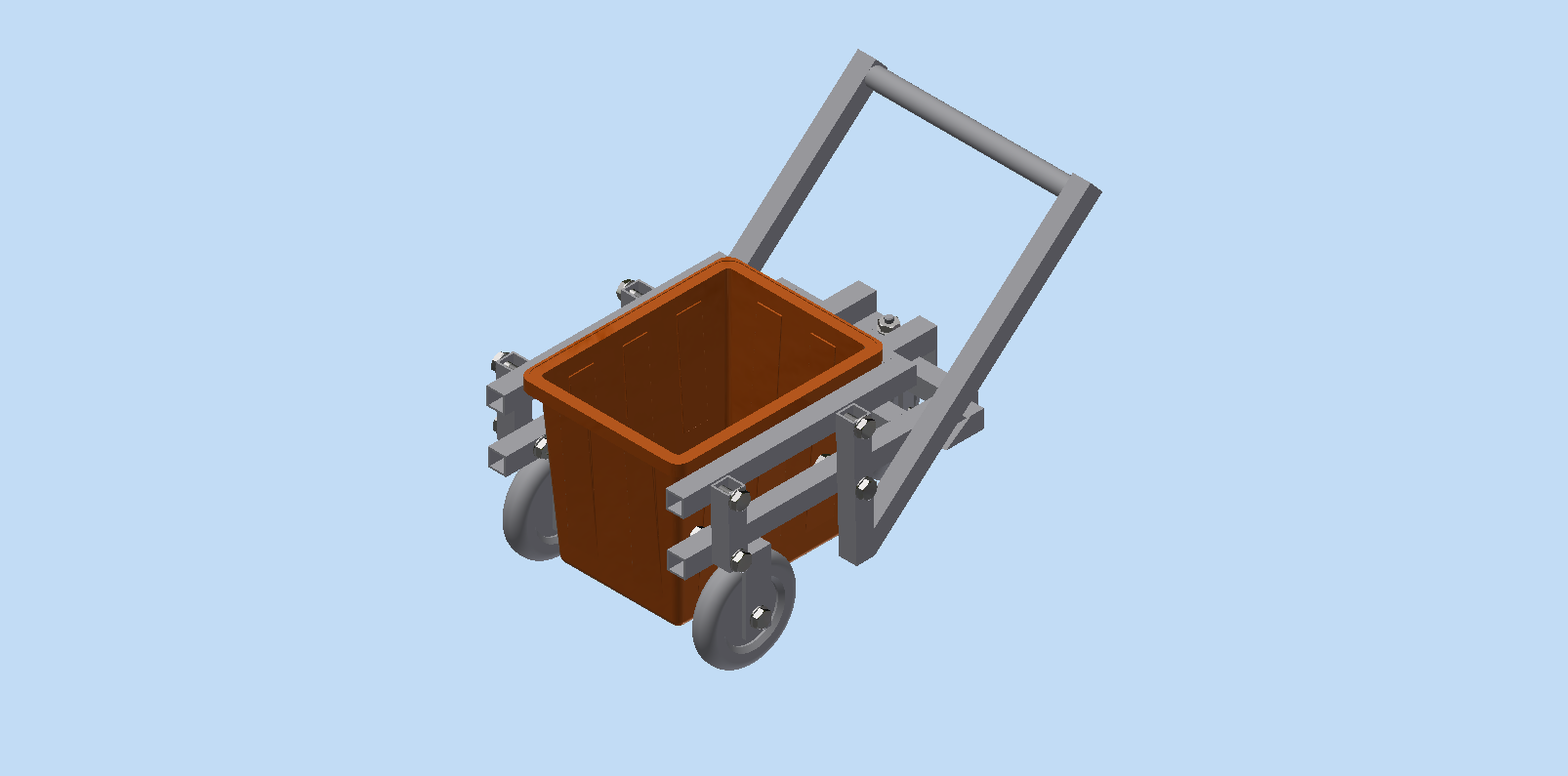

搬運機程式:

import sim as vrep
import math
import random
import time
import keyboard

print ('Start')

# Close eventual old connections
vrep.simxFinish(-1)
# Connect to V-REP remote server
clientID = vrep.simxStart('192.168.50.217', 19997, True, True, 5000, 5)

if clientID !=-1:
    print ('Connected to remote API server')

    res = vrep.simxAddStatusbarMessage(
        clientID, "40823204",
        vrep.simx_opmode_oneshot)

    if res not in (vrep.simx_return_ok, vrep.simx_return_novalue_flag):
        print("Could not add a message to the status bar.")

    opmode = vrep.simx_opmode_oneshot_wait
    STREAMING = vrep.simx_opmode_streaming

    vrep.simxStartSimulation(clientID, opmode)


    ret,fwheel_handle=vrep.simxGetObjectHandle(clientID,"joint0",opmode)
    ret,bwheel_handle=vrep.simxGetObjectHandle(clientID,"joint2",opmode)
    ret,pole1_handle=vrep.simxGetObjectHandle(clientID,"joint3",opmode)
    ret,pole2_handle=vrep.simxGetObjectHandle(clientID,"joint4",opmode)
    ds=0
    dy=0
    df=0
    db=0
    vrep.simxSetJointTargetPosition(clientID,fwheel_handle,df,opmode)
    vrep.simxSetJointTargetPosition(clientID,bwheel_handle,db,opmode)
    vrep.simxSetJointTargetPosition(clientID,pole1_handle,ds,opmode)
    vrep.simxSetJointTargetPosition(clientID,pole2_handle,dy,opmode)


    while True:
        #Clockwise
        if keyboard.is_pressed("2"):
            ds=ds-0.01
            dy=dy-0.01
            vrep.simxSetJointTargetPosition(clientID,pole1_handle,ds,opmode)
            vrep.simxSetJointTargetPosition(clientID,pole2_handle,dy,opmode)
            print("up")
        if keyboard.is_pressed("4"):
            ds=ds+0.01
            dy=dy+0.01
            vrep.simxSetJointTargetPosition(clientID,pole1_handle,ds,opmode)
            vrep.simxSetJointTargetPosition(clientID,pole2_handle,dy,opmode)
            print("down")
        if keyboard.is_pressed("6"):
            df=df+0.2
            db=db+0.2
            vrep.simxSetJointTargetPosition(clientID,fwheel_handle,df,opmode)
            vrep.simxSetJointTargetPosition(clientID,bwheel_handle,db,opmode)
            print("left")
        if keyboard.is_pressed("8"):
            df=df-0.2
            db=db-0.2
            vrep.simxSetJointTargetPosition(clientID,fwheel_handle,df,opmode)
            vrep.simxSetJointTargetPosition(clientID,bwheel_handle,db,opmode)
            print("right")



else:
    print ('Failed connecting to  remote API server')
    print ('End')
